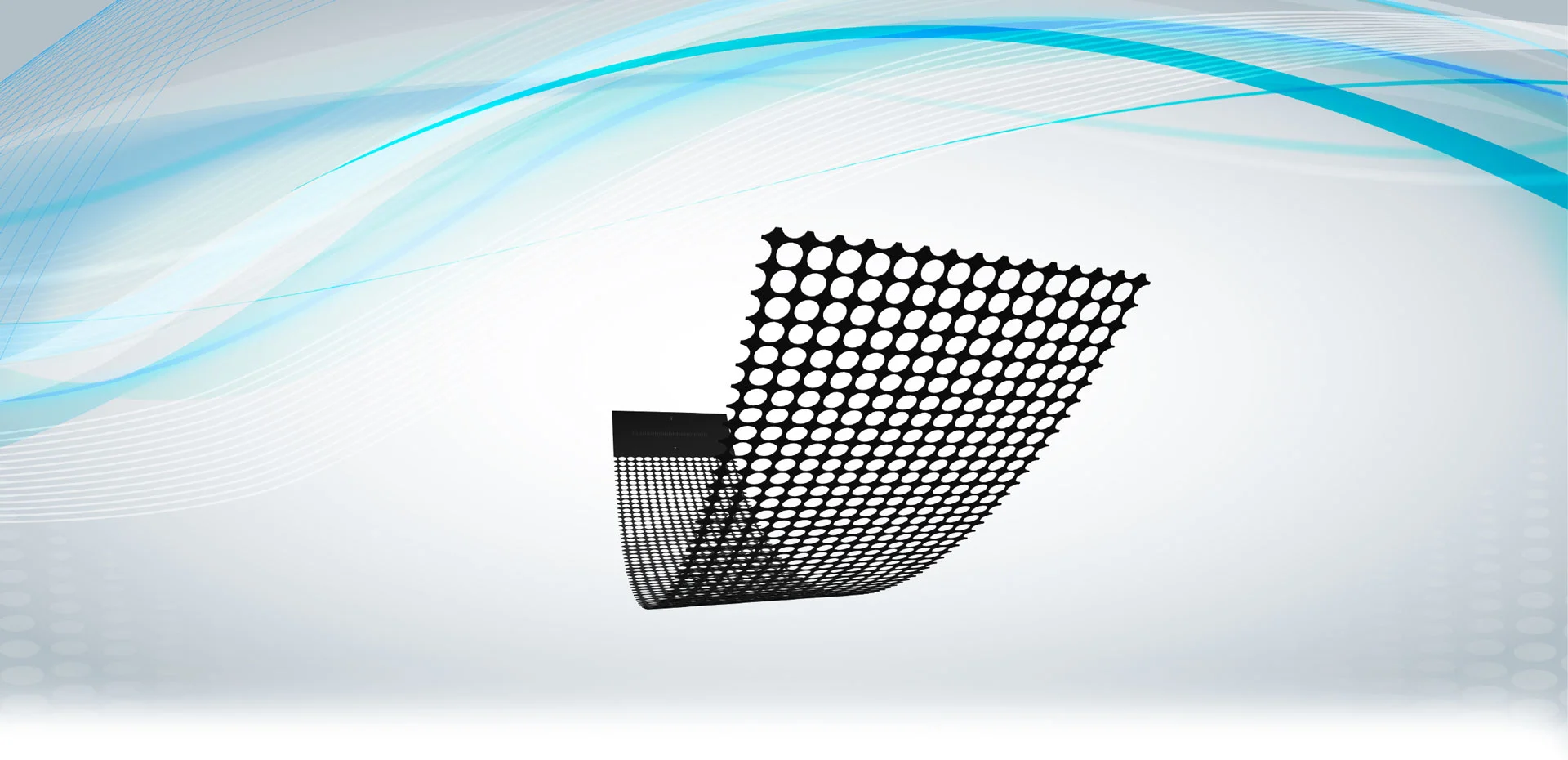

HIS Series

Holographic Invisible Screen

HIS series holographic LED display is new technology for window glasses transparent LED display. It's totally invisible LED display when put the power boxes at sides, which has a excellent holographic image and perfect advertising effect. It can display naked 3D videos to increase eye attraction. The thickness of HIS display is only 2mm, and weight is 3 kg/sqm, light and thin for easy installation and good appearance. Meantime, the HIS supports different installation methods like hanging from the ceiling, moveable standing on the ground, sticking to the glass directly, etc. Pixel pitch is P3.9mm and P6.25mm, panel size can be highly customized while the standard is 250x1500mm.

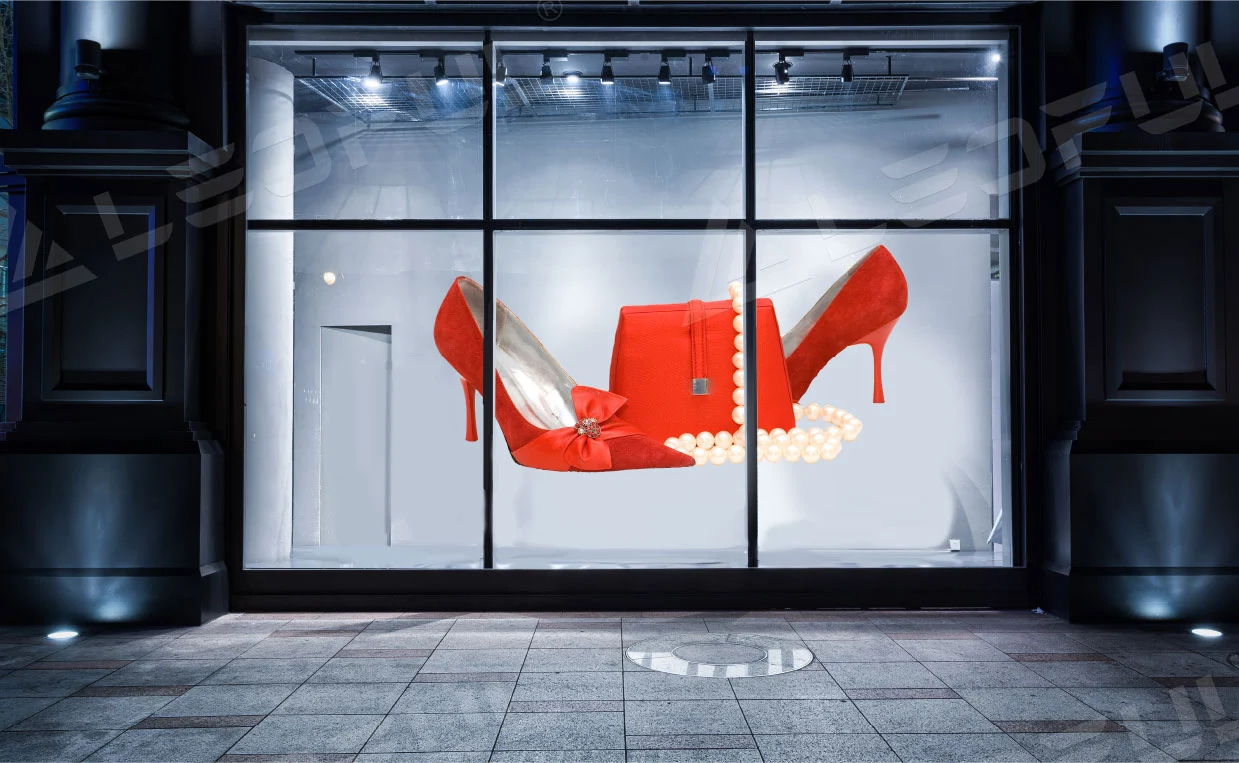

High Transparency & Invisible

The transparency of HIS series can reach more than 90% which is totally invisible, because there is no any frame in the middle of LED screen. So it does not affect the penetration of sunlight or people's sight when viewing from indoors or outdoors. The newfangled holographic images will bring the advertising better performance.

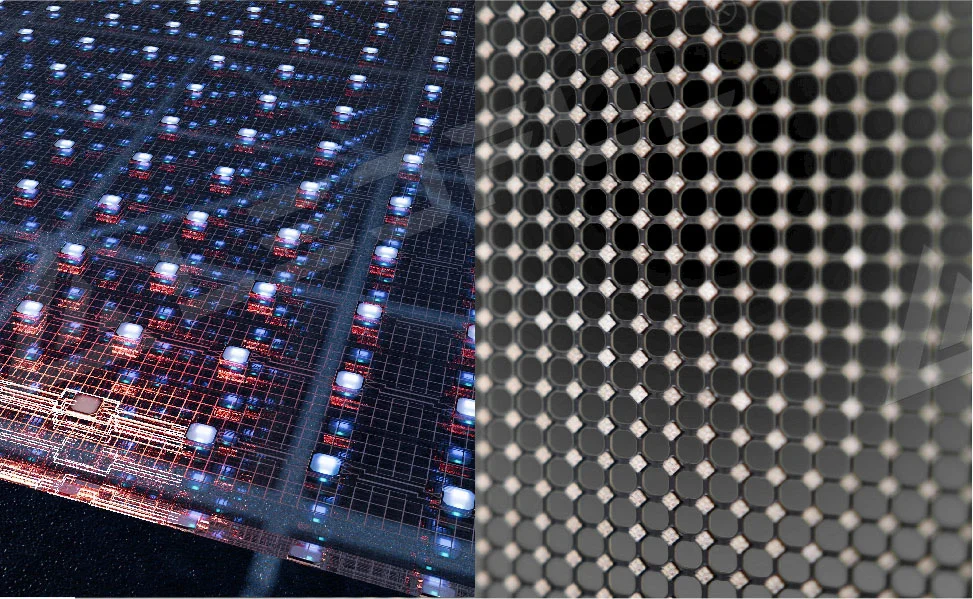

LED Lamp & Driving IC 2-in-1

Each LED lamp integrated one driving IC, high quality and more stable.If one LED dies, it will not affect the normal display of subsequent LEDs.

Super Light & Thin

Weight: 3kg/sqm

Thickness: 2mm for HIS LED display

Super light and thin product which can be posted on glass easily, meantime looks clean and clear.

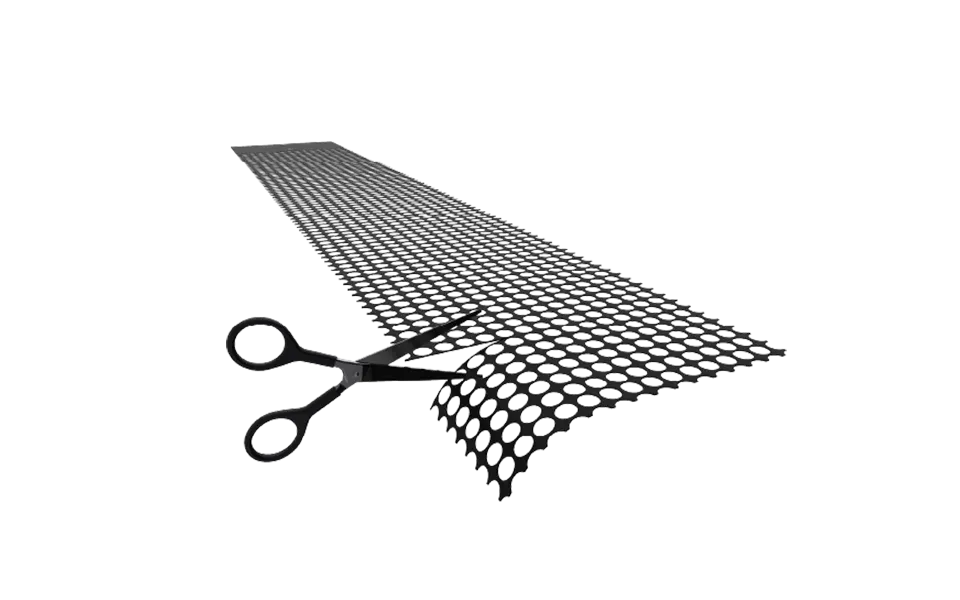

Free Cropping

LEDFUL HIS holographic invisible screen supports highly customized size. It supports free cropping without restrictions and can create various shapes, such as round, triangle, trapezoid, oval, etc.

Free size splicing

HIS products can be assembled vertically. The standard size is 250x1500mm, and the maximum height can reach 3 meters without any frame in the middle. Meanwhile, they can also be assembled horizontally. The standard size is 1500x250mm, and the maximum width can reach 3 meters without any frame in the middle.

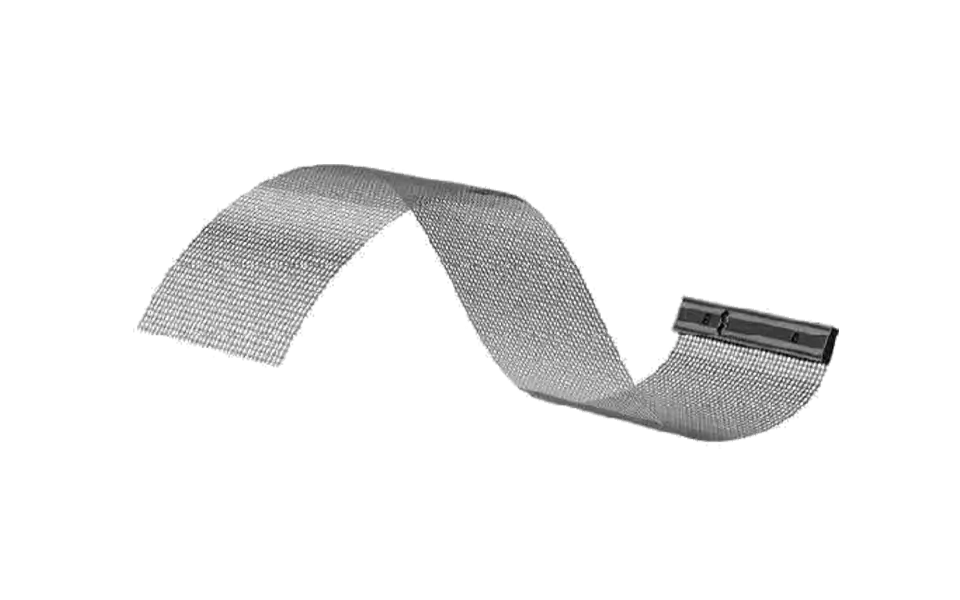

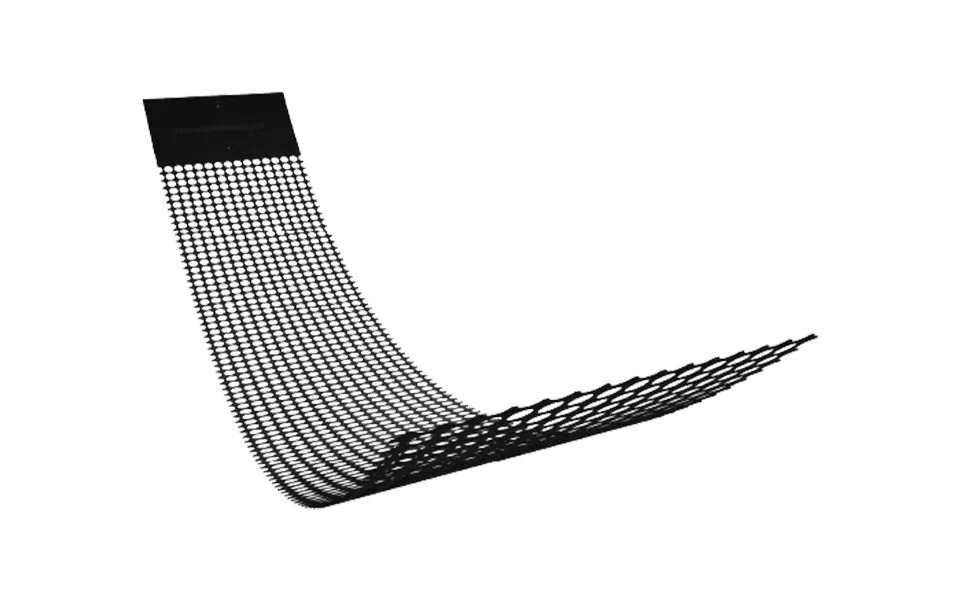

Support arc installation

The HIS series products can be slightly bent. For glass with not particularly large curvature, arc pasting can be achieved, presenting a beautifully smooth arc display effect.

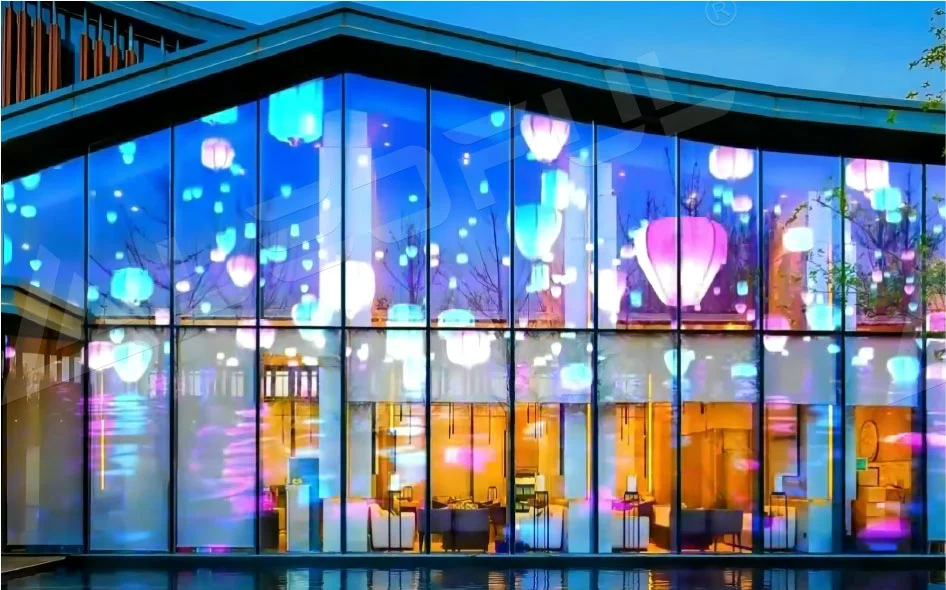

High Brightness 5000nits

Maximum brightness can be 5000nits which can face sunshine directly. If the screen faces to inside, the brightness can be adjusted from 0~5000nits.

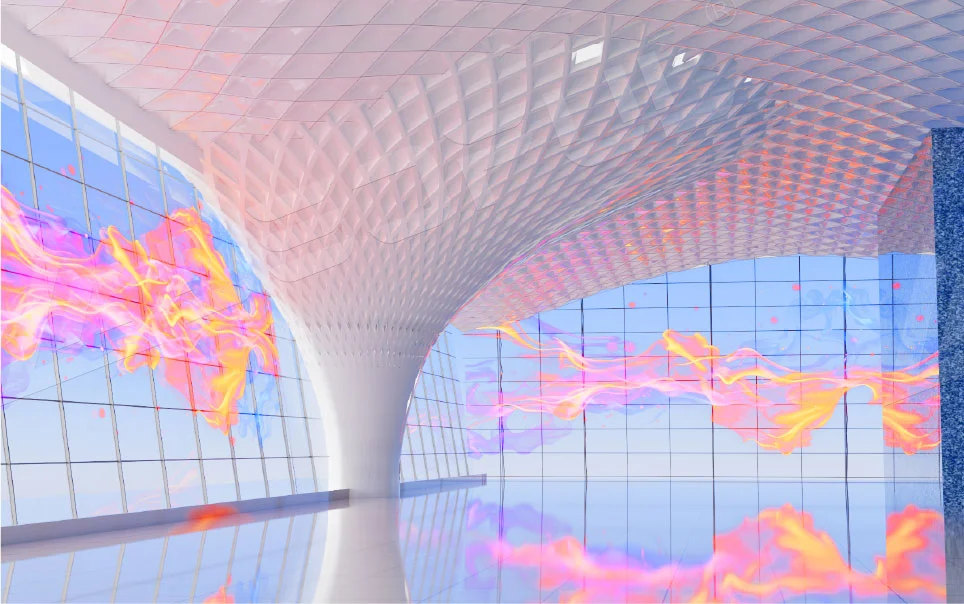

High Resolution

The minimum pitch is P2.5mm (too high in price and not promoted for the time being). For small pitch, there is P3.9 mm. For large pitch, there is P6.25 mm. An appropriate pitch can be selected according to the glass size and viewing distance.

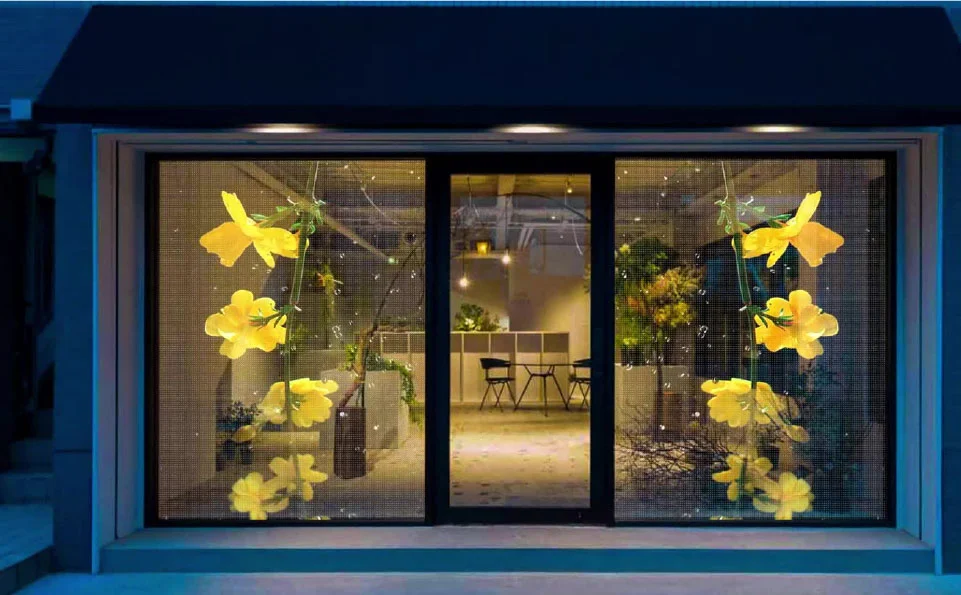

True 3840Hz & 16 Bits

The high refresh rate of 3840Hz and high gray scale of 16 bits make the display effect of the holographic transparent screen more realistic, vivid and delicate, giving your screen a very good advertising effect.

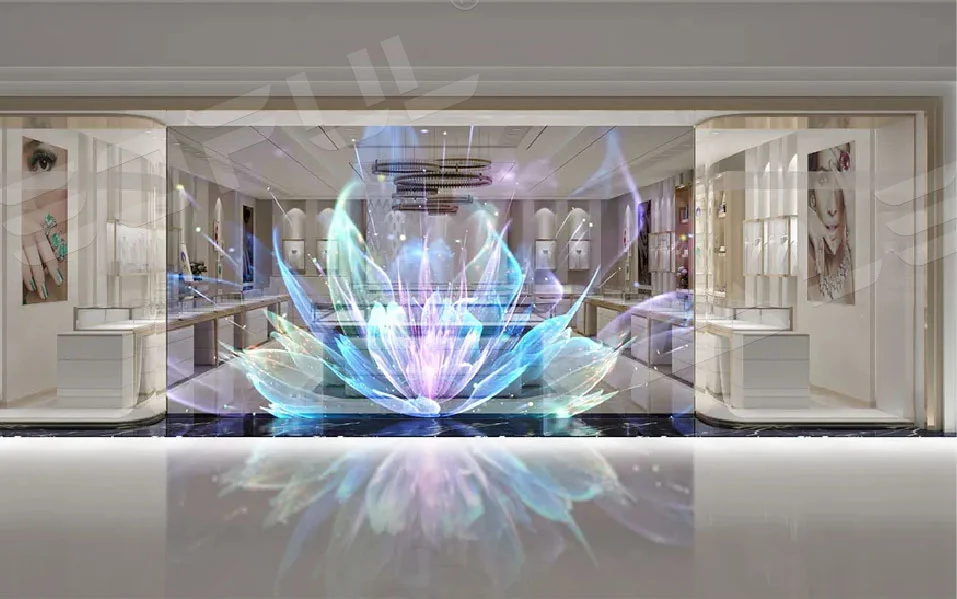

HIS CASE-1

Ads Show on Transparent Glass of Jewelry Store

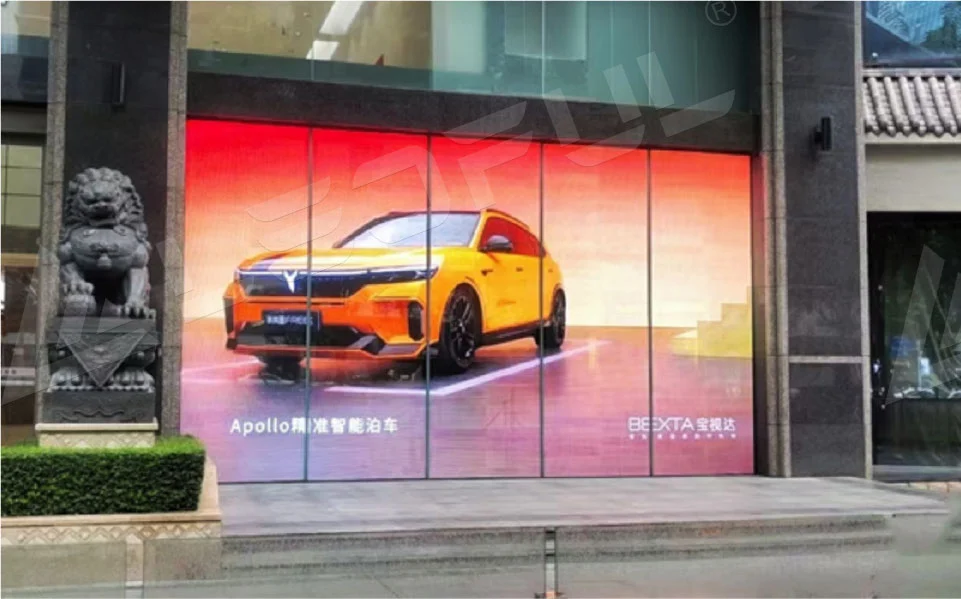

HIS CASE-2

Product Showcase of Car Dealer Shop

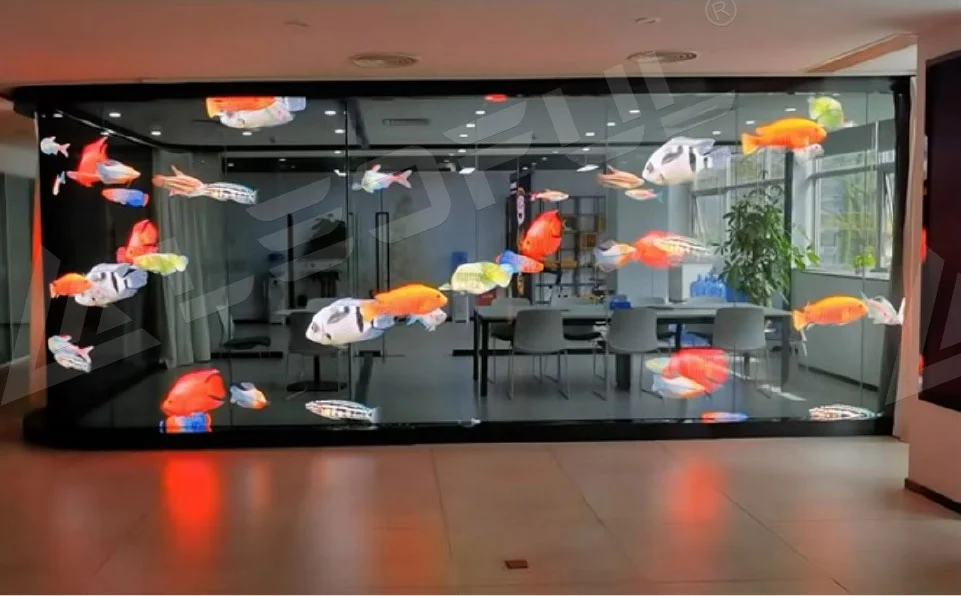

HIS CASE-3

Giant Glass Wall Between Office Room

Parameters

Model	HIS3.91	HIS6.25
Pixel Pitch(mm)	3.91	6.25
Pixel Matrix Per Sq.m	65,536	25,600
Pixel Configuration	SMD1717 Integrated Driving IC	SMD2020 Integrated Driving IC
Panel Dimension	1000250mm / 1500250mm	1000250mm / 1500250mm
Panel Resolution	25664 / 38464	16040 / 24040
Power Con.(W/㎡) (Max / Avg)	500W/150W	600W/180W
Contrast Ratio	6000:1	5000:1
Panel Material	Aluminum
Panel Thickness	2mm
Weight (kg/sqm)	3KG
Transparency	＞90%
Brightness (cd/㎡)	5000
Breakpoint Continuation	Support
Bending Installation	Support
Service Access	Rear / Front
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	16
Scan	Static Scanning
Viewing Angle (H/V)	160°/140°
IP Rate	IP43
Operation Temperature	-10℃ ~ +65°℃
Operation Humidity	10% ~ 90%RH
Input Voltage (AC)	AC110V / 220V, 50~60Hz
Blind Spot Rate	≦0.0001
Life span at 50% brightness	100,000 hours
* Specifications and photos are subject to change without prior notice.
